Home UAV Airframe Unmanned Aerial Vehicle (UAV) Forest Fire Prevention and Putting out with Extingusher
Product Attributes
| Model NO.: KWT-X6L | Flight Time: More Than 65 Minutes | Wind Tolerance: 14m/S | Max Flight Speed: 54km/H | Relative Flight Altitude: 1000m | Max Working Elevation: 5000m | GPS Position Vertical Accuracy: +/- 1.5m | GPS Position Horizontal Accuracy: +/- 2m | Remote Control Distance: 7km | GS Control Distance: 10km | Transport Package: Professional Design Packing | Specification: 1120*540*380mm | Trademark: ALLTECH | Origin: China | Production Capacity: 50000/Year | Certification: Iso9001, Rohs, Ce | Height: High Altitude | Operating Radius: Remote | Size: Miniature | Usage: Firefilghting and Delivery | Structure: Unmanned Rotorcraft |
Product Parameters
| Type of Shipping |
Product Details
Basic Info.
Model NO.
KWT-X6L
Flight Time
More Than 65 Minutes
Wind Tolerance
14m/S
Max Flight Speed
54km/H
Relative Flight Altitude
1000m
Max Working Elevation
5000m
GPS Position Vertical Accuracy
+/- 1.5m
GPS Position Horizontal Accuracy
+/- 2m
Remote Control Distance
7km
GS Control Distance
10km
Transport Package
Professional Design Packing
Specification
1120*540*380mm
Trademark
ALLTECH
Origin
China
Production Capacity
50000/Year
Product Description
As a new system of fast acquiring real time TV imaging and infrared imaging from low altitude, the drone is qualified for fast real time surveillance, featuring for quick mobility, low use cost and easy maintenance operation. It remains unique advantages on resources environment detection, forest fire detection and rescue command and so on.
The drone is mainly used for forest fire prevention daily surveillance, monitoring on forest fire situation, rescue assistance work and so on. The remote sense device mounted on the drone can be used to make daily surveillance, monitoring on forest fire status and detect high temperature fire point and so on rescue work, trying to nip forest fire in the bud.
Multi payloads for day and night work, perform tasks all weather anytime.
High efficiency with surveillance speed up to 10m/s and surveillance range up to 10km; stable network topology can be made by several drones for daily forest surveillance and proactive monitoring.
Comprehensive view not only for global monitoring to master the fire spread direction, but also for snapshoot of high temperature fire point to make partial key surveillance, serving as key factors for decision making.
High safety: maximum protection of fire personnel life by taking the place of firefighters for fire detection.
Portable convenience, easy operation, fast response and low environment demands for take-off and landing.
Product Features
- Carbon fiber integrated molding with high rigidity and
- light weight; supports more than 65 minutes flight time.
- Innovative upturned arm design for flying stability and
- strength, ensuring wind tolerance up to 14 m/s.
- Able to fly at elevation of 5000m (16500 ft).
- Full HD 1080i/P real time video transmission.
- Detachable structure, get ready to fly within 5 minutes.
- Highly integrated rainproof gimbal unit with good rain
- performance.
- Intelligent flying control system, supports manual
- precision control and autonomous flight.
-
Technical Parameters Diagonal wheelbase 1600 mm Standard take-off weight 9.8 kg Max take-off weight 14.4 kg Max payload weight ≥5 kg Flight time ≥65 min (@9.8kg) Wind loading rating 14 m/s Max flight speed 15 m/s Relative flight speed 1000 m Max working altitude 5000 m GPS position accuracy vertical: ±1.5 m
horizontal: ±2 mRemote control distance 7 km(up to the environment) GS control distance 10 km Center Frame Packing Case Dimensions 1150 x 440 x 500 mm Frame Arm Packing Case Dimensions 1120 x 540 x 380 mm

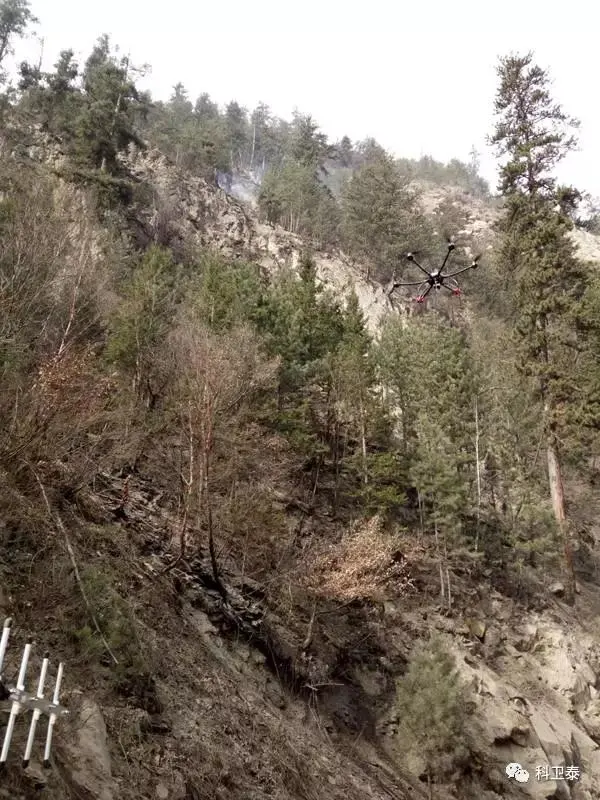

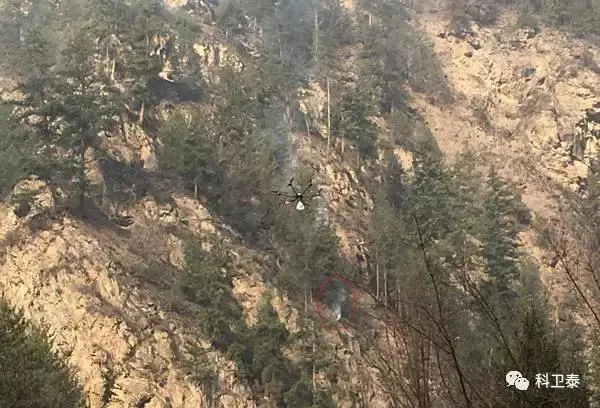

Forest fire surveillance and emergency rescue command with fire pot and real time transmission comand.
