6L Agriculture Drone Pesticide spraying drone Crop sprayer !

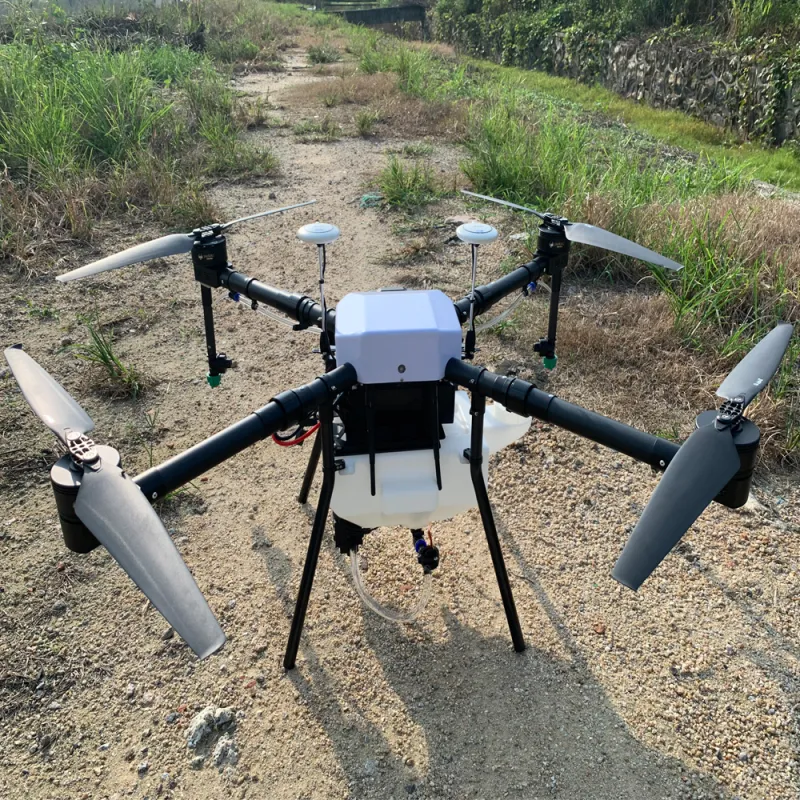

JMR-X1100 6L Capacity Agriculture sprayer drone was designed with modular construction parts. The smallest Crop Sprayer Drone you have never seem. Slim and light weight, Even your 5 seats car can carry 4 drones. It build quickly and easily, Convenient for maintenance .
The excellent Avoid-vibration ability. Up to 13kg take-off ability .6L pesticide tank good for around 15 Hectares spraying per day. Pesticide spraying efficiency about 2.0 to 2.5 hectares per hour. Intelligent spray work release your hands , Just make flight plan by App for your fields ,setup the parameters of spraying then let the drone do it self. Drone will give you a report of the spraying work, And you can save the missions data for next spraying work.
6L sprayer drone beseem to spraying the crops of rice ,wheat, corn, sugarcane, soybean, peanut ,grass,tea ,watermelon etc. Functions include: A-B point automatic spraying ;Airway navigation automatic spraying; Tank empty alarm and continue to spraying; Low battery safe protection; Fail safe protection; Height keeping radar and terrain follow etc.
Quick reload battery cartridge
Battery slipping tray compatible with different capacity batteries. (1 *6S 10000mAh upto 1*6S 22000mAh) .
Stronger CNC machined frame
"H" shaped of cut section give stronger structural strength for this drone. Reinforcing rib on the bottom bring the powerful shock resistance and impact resistance.
Nozzles Protection
Rubber Nozzles mount can anti-collision during drone in transporting.
Multi purpose
Compatible with spreading system ,Easily exchange between spreading and spraying system just remove few screws .
Functions :
|
SPECIFICATIONS |
|||
|
Model : |
JMR-X1100 |
Tank Capc. |
6 L |
|
N.W. : |
5.6Kg |
Max Take Off Weight: |
13Kg |
|
Dimension(expand): |
80x80x40 CM |
Dimension(folded): |
46x46x40 CM |
|
Control Radius: |
2000 Meters |
Max Flight Height: |
30 Meters |
|
Spraying Width: |
2.5~4 Meters |
Flight Speed: |
1~9 M/S |
|
Hovering Time(no load): |
20 Min |
Hovering Time(Full load): |
7 Min |
* Hovering Time Tested by 1*6S 12000mAh, K++ V2 FC. Full load at 12.3Kg
|
FUNCTIONS LIST |
|||
|
FLIGHT MODE |
MANUAL/GPS |
SPRAY MODE |
MANUAL/A-B POINT/AIRWAY |
|
TERRAIN FOLLOW |
RADAR |
OBSTACLE SENSOR |
RADAR * |
|
EMPTY TANK WARNING |
YES |
CONTINUE SPRAY |
YES |
|
LOW BATTERY ALRM |
LANDING/RTH |
RETURN TO LANDING |
FAILSAFE RTH/SMART RTH |
|
FLOWRATE CONTROL |
MANUAL/AUTO |
DATA PROTECTION |
YES |
|
FPV( REAL TIME VIDEO) |
720P * |
CROP APP |
Android App |
* Optional Hardware request
Because Agricultural Drone maybe different configurations depend customers demand, Price offered Do Not Include the Drone Lipo Batteries and Lipo Battery Charger , Duo to supply the correct products to you ,Please contact us before your make order.
