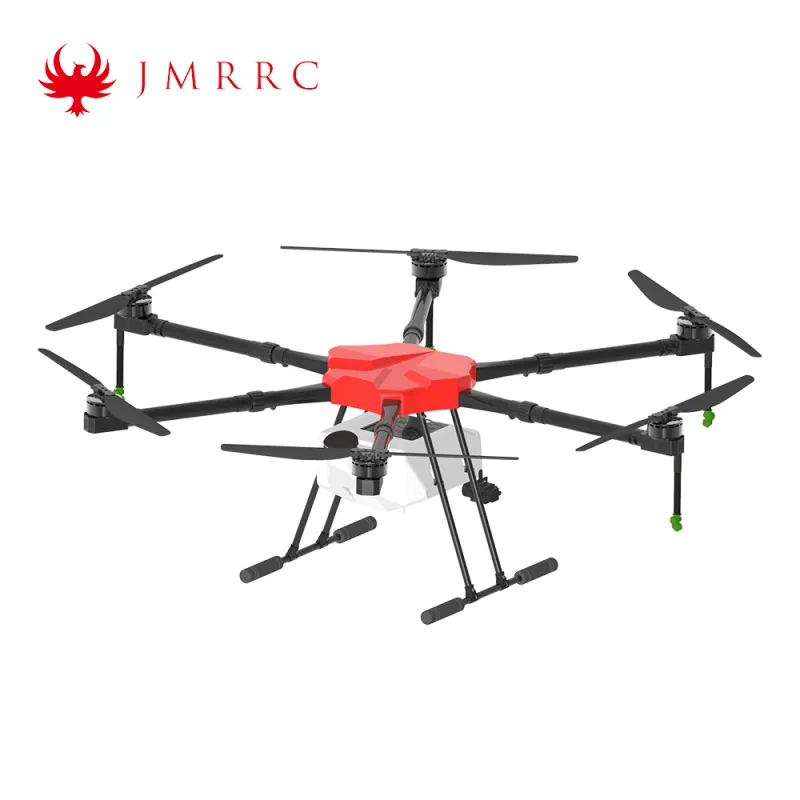

JMR-V1650  Agriculture sprayer drone most materials are carbon fibers. Stronger and light weight. Keep reliable flights and the lowest running cost is what we are striving.  High efficiency propulsion system Let this Drone Flight Platform can take off 16Kg pesticide or 20Kg (if use 32 inches propeller and other  Agricultural landing Gear ). Pesticide spray efficiency upto  4 to 4.5.0 hectares per hour. Intelligent spray work release your hands ,Setup flight plan by App for your fields , then left the drone do the rest. Record and save the report of the spraying work,Save the missions data for next spraying work. 16L sprayer drone beseem to spraying the crops of rice ,wheat, corn, sugarcane, soybean, peanut ,grass,tea ,watermelon etc.Functions include: A-B point automatic spraying work;Airway navigation automatic spraying; Tank empty alarm and continue to spray;Low battery safe protection; Fail safe  protection; Height keeping radar etc.

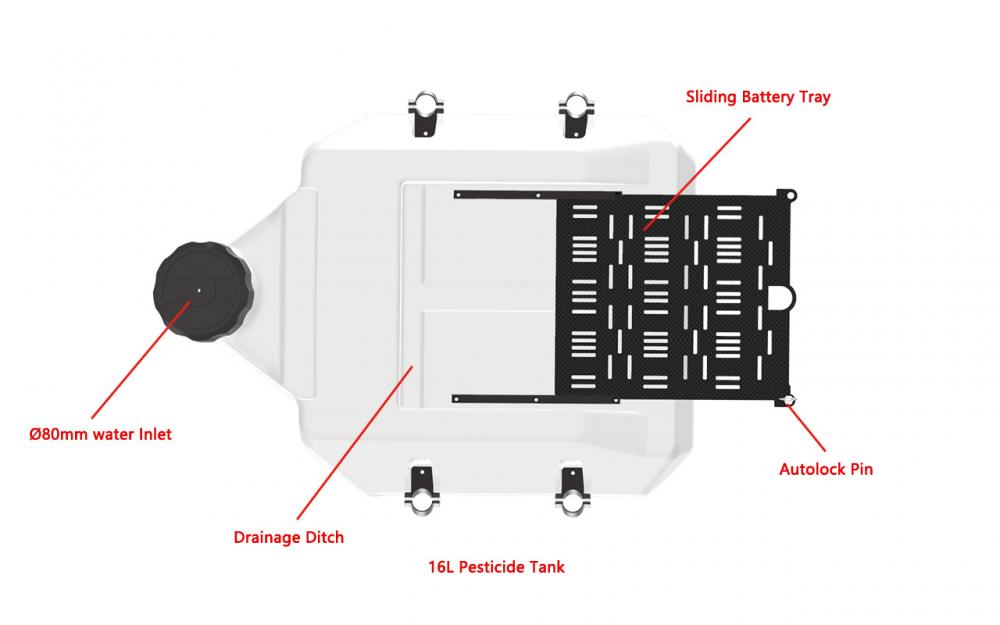

Quick reload battery cartridge

Battery slipping tray compatible with different capacity batteries. (2*6S 16000mAh upto 2*6S 22000mAh) . And smart 12S battery also.



Stronger Frame

3mm thickness Carbon fiber center plate with whole-made 2mm Carbon Fiber arm pipe  give stronger structural strength for this drone. Reinforcing rib on the bottom bring the powerful shock resistance and impact resistance. The lowest maintenance charger if any air crash happened.





Nozzles Protection

Rubber Nozzles mount can anti-collision during drone in transporting.





Multi purpose
Compatible with 13L spreading system ,Easily exchange between spreading and spraying system just remove few screws .

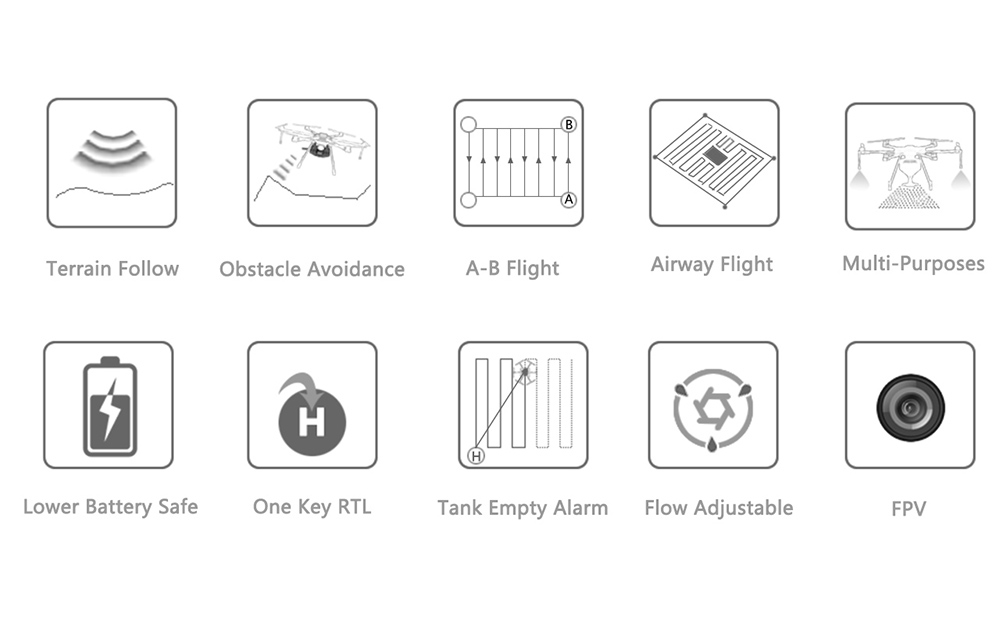

Agriculture Functions:



SPECIFICATIONS
Model :	JMR-V1650HZ	Tank Capc.	16 L
N.W.  :	14.5Kg	Max Take Off Weight:	36Kg /45KG (32` PROP)
Dimension(expand):	176x153x59 CM	Dimension(folded):	81x72x59 CM
Control Radius:	3000 Meters	Max Flight Height:	30 Meters
Spraying Width:	4~5.5 Meters	Flight Speed:	1~9 M/S
Hovering Time(no load):	26 Min	Hovering Time(load):	10.2 Min

* Hovering Time Tested by  2*6S 22000mAh, N3 AG 1.0 FC.  Full load at 36 Kg





FUNCTIONS LIST
FLIGHT MODE	MANUAL/GPS	SPRAY MODE	MANUAL/A-B POINT/AIRWAY
TERRAIN FOLLOW	RADAR	OBSTACLE SENSOR	RADAR *
EMPTY TANK WARNING	YES	CONTINUE SPRAY	YES
LOW BATTERY ALRM	LANDING/RTH	RETURN TO LANDING	FAILSAFE RTH/SMART RTH
FLOWRATE CONTROL	MANUAL/AUTO	DATA PROTECTION	YES
FPV( REAL TIME VIDEO)	720P *	CROP APP	Android App

* Optional Hardware request



Measurement











Because Agricultural Drone maybe different configurations depend customers demand, Price offered Do Not Include the Drone Lipo Batteries and Lipo Battery Charger , Duo to supply the correct products to you ,Please contact us before your make order.
